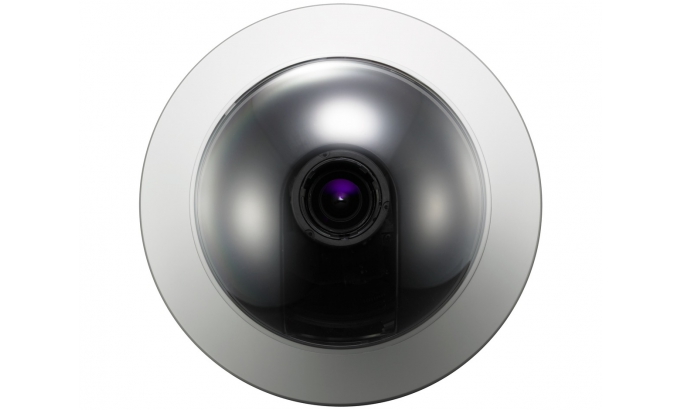

Camera Sony SSC-FM560
| Mã sản phẩm: | SSC-FM560 |
| Bảo hành: | 1 năm |
| Tình trạng: | Còn hàng |
| Liên hệ | Mua Hàng |
|
- Thông số kỹ thuật
- Bài Viết
Camera
| Image device | 1/3-type Super HAD CCD II |
|---|
| Number of effective pixels (H x V) | 480,000 pixels
(976 x 494) |
|---|
| Signal system | NTSC standard |
|---|
| Horizontal resolution | 700 TV lines (sharp mode) |
|---|
| S/N ratio | More than 55 dB (AGC Off) |
|---|
| Minimum illumination | Colour: 0.1 lx, B/W: 0.01 lx (F1.2, 50 IRE) |
|---|
| Dynamic range | 75 dB (typical) |
|---|
| Video output | VBS:1.0 Vp-p |
|---|
| Synchronization | Internal/AC line lock selectable |
|---|
| Gain control | Auto (OFF/Normal/Turbo)/Manual |
|---|
| White balance | ATW/ATW-PRO/3200K/5600K/Manual |
|---|
| Lens type | Built-in variable focal lens |
|---|
| Zoom ratio | Optical 3.7x |
|---|
| Horizontal viewing angle | 101.8 to 27.4 |
|---|
| Focal length | f=2.8 to 10.5 mm |
|---|
| F Number | F1.2 (Wide end), F2.6 (Tele end) |
|---|
| Minimum object distance | 300 mm (11 7/8 inches) |
|---|
| Iris | Auto |
|---|
| Panning range | 355 degrees |
|---|
| Tilting range | ±77 degrees |
|---|
| Swivel rotation | 350 degrees |
|---|
Camera Features
| Day/Night | Yes (True D/N) |
|---|
| Noise reduction | Yes (2DNR + 3DNR, Weak/Normal/Strong) |
|---|
| Back light compensation | OFF/DynaViewSX/iBLC/SPOT |
|---|
| Automatic tone reproduction | Yes (DynaViewSX mode only) |
|---|
General
| Mass | 320 g (11.3 oz) |
|---|
| Dimensions | 121.6 x 86.5 mm (4 7/8 x 3 1/2 inches) |
|---|
| Power requirement | AC 24 V ±10%, DC 12 V ±10% |
|---|
| Power consumption | 2.8 W |
|---|
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
|---|
| Storage temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|
| Operating humidity | 20% to 80% |
|---|
| Storage humidity | 20% to 90% |
|---|
| Supplied accessories | Operating instructions x1, Menu instructions x1,
Template x1 |
|---|
| Optional accessories | YT-ICB140 In-ceiling Bracket |
|---|
The SSC-FM560 offers a combination of exceptional image quality under all lighting conditions and the ability to cover the greatest possible area through its innovative minidome three-hinge structure, making it the ideal security camera for environments such as offices, factories, entrances, car parks and public spaces, where image quality and wide coverage are vital.
The SSC-FM560 delivers superb images in all conditions through a combination of advanced Sony technologies – DynaViewSX for capturing high-contrast scenes, a Super HAD II CCD sensor for delivering sharp, detailed images, and the True Day/Night function to ensure optimal 24-hour performance.
