Camera Sony SNC-DH280
|
- Thông số kỹ thuật
- Bài Viết
CAMERA | |
|---|---|
| Environment | Outdoor |
| Camera type | Static |
| Tamper resistance | Yes |
| Mounting methods | Ceiling-mount only |
| Horizontal viewing angle | 88.5-32.3° |
| Lens | 3.1-8.9mm (F1.2-2.1) varifocal lens |
| Sensor | 1/2.8" progressive scan "Exmor" CMOS sensor |
| Day/night | Built-in infra red night vision |
| Minimum illumination | Color: 0.4 lux, B/W: 0 lux (IR LEDs on) |
| Network | Wired |
| Audio support | 2-Way audio with G.711/G.726 compression |
| Power | IEEE802.3af Power over Ethernet (Class 3), 24V AC or 12V DC |
| System compatibility | Microsoft Internet Explorer V6.0, 7.0, or 8.0; Firefox V3.5; Safari V4.0 or Google Chrome V4.0 |
| Mobile access | Yes |
| Mobile compatibility | Compatible with iPhone, Android and Windows-based smart phones |
VIDEO | |
| Resolution | 2 megapixel & HD1080p |
| Video format | NTSC & PAL |
| Supported resolutions | 1920x1440, 1600x1200, 1680x1056, 1920x1080, 1440x912, 1376x768, 1280x960, 1280x800, 1280x720, 1280x1024, 1024x768, 1024x576, 800x480, 768x576, 720x576, 704x576, 720x480, 640x480, 640x368, 384x288, 320x240 and 320x192 |
| Aspect ratio | 4:3 and 16:9 |
| Frame rate | JPEG: 10fps @ 1920x1440, 15fps @ 1920x1080. H264: 20fps @ 1920x1440, 30fps @ 1920x1080. MPEG-4: 15fps @ 1920x1440, 20 fps @ 1920x1080 |
| Compression | MJPEG, MPEG-4 and H.264 |
| Digital pan tilt zoom (DPTZ) | Full digital pan-tilt-zoom |
| Analogue video out | Phono jack (1.0 Vp-p, 75 ohms, unbalanced, sync negative) |
VIEWING, DETECTION & RECORDING | |
| Simultaneous users | 5 |
| Alarm triggers | DEPA intelligent video analytics and external input |
| Intelligent video analytics | Intelligent motion, audio, object counting, cross-line and tamper detection |
| External alarm inputs | 1x trigger input |
| Alarm actions | Transfer of images via FTP and Email |
| On-board recording | No |
| Recording software included | Sony RealShot Manager Lite |
CONNECTIONS | |
| Power | Screw terminals for 12V DC or 24V AC |
| Network | 10/100Mbps RJ-45 Ethernet connection with Power over Ethernet support |
| IPv6 | Yes |
| Alarm input | 1 x sensor input |
| Alarm output | 1 x alarm output |
| Audio | 2 x Mini-jack connections (microphone in, line out) |
| Other | Phono analogue video output port |
OTHER | |
| Dimensions | ø6.53" x 4.69" |
| Product weight (Kg) | 1.320 |
| Colour | White |
| Manufacturer warranty | 1 year |
| Operating temperatures | -22 to 122°F |
| Power consumption | 29W max |
| Dynamic dns | No |
| QoS | No |
| Protocols supported | IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP and SNMP |
| Security | Multi-level user security and HTTPS encryption |
| ONVIF / PSIA compliant | ONVIF only |

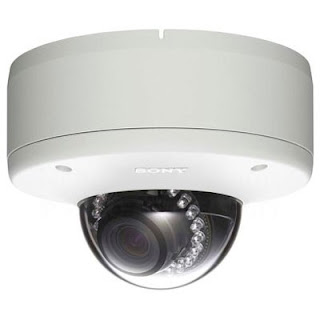

Overview of Sony SNC-DH280
The Sony IPELA SNC-DH280 provides highly detailed video in scenes with demanding light conditions. 3-megapixel footage is produced by the camera, capturing over 9x more detail than a standard CCTV camera, as well as HD1080p video, with detailed HDTV-like footage at 30 frames per second. A day/night filter and infrared lighting are also integrated into the camera, allowing viewers to see color footage during the day and monochrome video at night, even with no external light sources.The camera also includes software designed to increase the camera's dynamic range, capturing detail in bright and shadowed areas simultaneously, such as ViewDR which combines two successive frames with different exposure times and Visibility Enhancer which adjusts the brightness of the image on a pixel-by-pixel bases. Additionally, the camera features a tough metal housing, with included heater, which is both IK10- and IP66-rated, offering protection from rain and vandalism.Installation of the camera is quick and easy, with Power over Ethernet (PoE) which combines data and power into a single cable for reduced wiring and analog video output for use with installation monitors. Additionally, the camera's easy focus and easy zoom features let installers quickly and accurately set the desired view at the touch of a button. Sony's Real Shot Manager Lite recording software is also included, recording video to a Windows PC without the need to purchase additional software.NOTE
This camera does not come with a power supply. Should you require a Power over Ethernet midspan please select one from the options above.KEY FEATURES AND BENEFITS
- Monitor the scene in complete darkness using the switchable day/night filter and integrated infrared LEDs
- Features such as ViewDR and Visibility Enhancer increase the dynamic range of the camera, capturing detail in bright and shadowed areas simultaneously
- DEPA video analytics intelligently reduce the amount of detected events to only those which are required, maximizing storage space
- Never miss a detail with 3-megapixel resolution and HD1080p compliance
- The camera can be installed outdoors without risk of damage from vandalism, the weather or low temperatures
- Install the camera quickly using easy zoom/focus, Power over Ethernet and video output for installation tools
- XDNR reduces the signal noise associated with capturing video in low light conditions
- Listen to events on site with 2-way audio
- Power over Ethernet supplies power to the camera using the network cable, reducing wiring required (PoE source required, selectable above)
- Sony Real Shot Manager Lite records video to a Windows PC at no additional cost
TYPICAL USE
The Sony IPELA SNC-DH280 would be ideal for high-risk outdoor locations susceptible to vandalism where highly detailed footage is required in challenging light conditions, such as schools and colleges, hospitals, shopping malls, parking lots, government buildings and corporate headquarters
